UB-138 ¡@ USB3.1 10Gbps 1x Type-C + 1x Type-A Low Profile PCIe x4 Host Adapter |
|
|
Discontinued! UB-138-2 Instead! ¡@ |
¡@

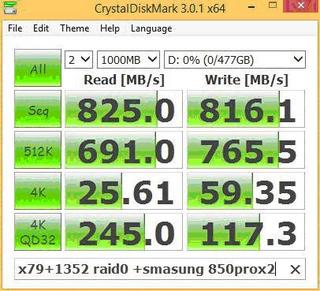

UB-138 Performance Data 825MB/s ¡@ ¡@ ¡@ FEATURES ¡@ o USB3.1 PCIe x4 Lane Host Adapter supports PCIe Gen2 x2 or PCIe Gen3 x1 o USB 3.1 Type C 1x and Type A 1x downstream receptacle ports o Provides 5V3A USB bus power USB 3.1 Type C port and 5V2A Type A port o Supports PCIe 1.0 and PCIe 2.0 and PCIe 3.0 motherboard o Compliant with Universal Serial Bus 3.1 Specification Revision 1.0 o Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1 o Compliant with USB Attached SCSI Protocol Specification 1.0 o All USB ports can handle SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction o Support USB3.1, USB3.0, USB2.0 and USB1.1 devices o Compliant with PCI Express Specification 3.0 o Low Profile PCIe Form Factor o Regular size PCIe bracket on board and Low Profile PCIe Bracket included o Adapter board powered by PCIe slot o Optional 15Pin SATA power input can automatically provide sufficient 5V power to USB3.1 bus from 12V of power supply instead of PCIe o Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance o Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 and later OS in-box USB driver natively support UASP, no additional driver required o Provides Asmedia 64bit and 32bit Windows 7, Vista, XP and 64bit 2008 R2 driver o Mac 10.11 in-box driver Not support USB3.1 o Fully RoHS compliant |
¡@
