UB-138-2

¡@

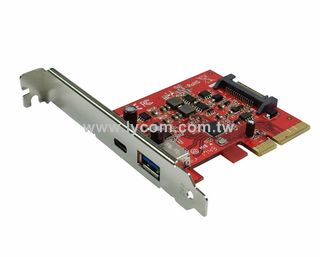

10Gbps USB3.1 1x USB-C + 1x USB-A 2Ports Low Profile PCIe x4 Host Adapter

Fast USB3.1 SuperSpeed+ 10Gbps 1x USB-C 1x USB-A 2Ports in Low Profile PCIe x4 Lane Host Adapter to provide USB bus high power USB-C 5V3A and USB-A 5V2A, total 5V5A power!

¡@

FEATURES

¡@

o        PCIe x4 Lane Host Adapter with USB3.1 PCIe Gen3 x2 fast chipset

o        USB 3.1 Type C 1x and Type A 1x downstream receptacle ports

o        USB bus power USB-C port 5V3A and USB-A 5V2A, total 5V5A

o        Compliant with Universal Serial Bus 3.1 Specification Revision 1.0

o        Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1

o        Compliant with USB Attached SCSI Protocol Specification 1.0

o        All USB ports can handle SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction

o        Support USB3.1, USB3.0, USB2.0 and USB1.1 devices

o        Compliant with PCI Express Specification 3.0

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and Low Profile PCIe Bracket included

o        Provides 2x USB 5V power to USB devices from Motherboard PCIe x4 edge slot directly, or from PC power supply 12V if 15Pin SATA Power installed

o        Require an empty PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance

o        Latest Mac10.8 to 10.10, Mac10.12, Windows 8, 8.1, 10, 11, Server 2012, Linux kernel 2.6.31 and later OS in-box USB driver natively support UASP, no additional driver required

o        Mac 10.11 in-box driver Not support USB3.1

o        Chipset : Asmedia ASM3142

o        Fully RoHS compliant

¡@
