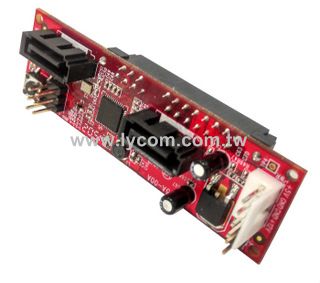

ST-175A

Build and Use Existing Drive Content to H/W RAID 1 (Mirroring)

FEATURES

o        SATA III 6Gbps Hardware RAID Vertical Adapter

o        File content of existing drive is active and usable when RAID 1 mode

o        Supports SATA I, SATA II, SATA III Host

o        Supports RAID 0, RAID 1, SPAN (Big Drive) and JBOD (PMP) Modes

o        Not support JBOD (PMP) Mode if Port-Multiplier-Not-Aware SATA Host connection

o        Configuration Jumper and Windows & Mac software GUI for RAID modes setting

o        One 7Pin SATA connector to SATA Host

o        22Pin SATA female connector directly inserted to primary SATA Drive and one 7Pin SATA connector for 2nd SATA Drive

o        Supports SATA III, SATA II and SATA I Drive and ODD

o        Auto-negotiation support for 1.5Gbps, 3Gbps and 6Gbps SATA drives

o        Fully compliant with Serial ATA specifications 3.0

o        Supports Native Command Queue (NCQ)

o        Primary drive and Adapter Powered by small 4pin molex power connector

o        100% OS-Independent Hardware RAID converter board to support PC, MAC and Linux, no driver required

o        Supports Windows & Mac GUI to monitor RAID status

      o    Fully RoHS compliant
