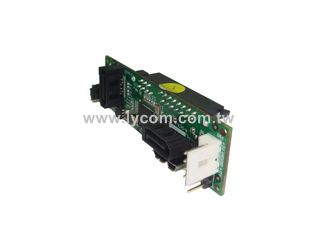

ST-175

¡@

1x SATA Host to 2x Drives 6Gbps H/W RAID Adapter

¡@

100% OS-Independent Adapter Easy Upgrade your IPC computer system to support Hardware RAID 1, Big Drive or 2Drives to two SATA drives for data safety or high capacity!

¡@

FEATURES

¡@

o        SATA III 6Gbps Hardware RAID Vertical Adapter

o        Supports SATA I, SATA II, SATA III Host

o        Configuration Jumper supports RAID 1, SPAN (Big Drive) and PM (2Drives) Modes

o        Not support PM (2Drives) Mode if no Port Multiplier compatible SATA Host connection

o        RAID 1 mode supports one Host Port connects two drives and protects the data from a disk failure by automatically writing identical data on 2 drives

o        One 7Pin SATA connector to SATA Host

o        22Pin SATA female connector directly inserted to primary SATA Drive and one 7Pin SATA connector to 2nd SATA Drive

o        Supports SATA III, SATA II and SATA I Drive and ODD

o        Auto-negotiation support for 1.5Gbps, 3Gbps and 6Gbps SATA drives

o        Fully compliant with Serial ATA specifications 3.0

o        Supports Native Command Queue (NCQ)

o        Primary drive and Adapter Powered by small 4pin molex power connector

o        100% OS-independent Hardware RAID bridge converter to support PC, MAC and Linux, no driver required

o        Hardware Jumper and Windows & Mac software GUI for RAID mode configuration

o        Provides Windows and Mac GUI to configure RAID modes and monitor RAID status

o        Supports Auto-rebuilding

o  RoHS Compliant

¡@
