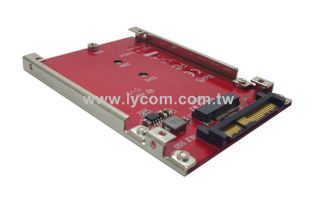

NVMe M.2 SSD to NVMe U.2 2.5” SFF-8639 SSD Adapter











Install Enterprise-Class High Performance PCIe Gen3 x4 M.2 NVMe SSD and become a 2.5” U.2 68Pin SFF-8639 SSD!

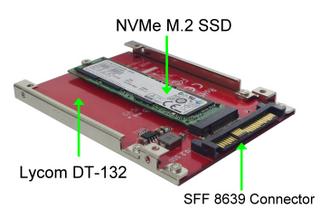

o        Convert PCIe-NVMe M.2 SSD to NVMe U.2 2.5” SFF-8639 SSD

o        Compliant with PCI Express 4.0 x4 Lane

o        M.2 NGFF type 2280-D5-M M Key socket on board



o        Supports PCIe Gen4 and Gen3 x4 Lane M.2 80mm, 60mm, 42mm NVMe SSD



o        68Pin U.2 SFF-8639 interface to PCIe 4.0 and PCIe 3.0 PCIe-NVMe port

o        Support PCIe L1 Power Management Substates with CLKREQ

o        Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242  SSD

o        Supports dual-sided SSD module 1.5mm component height on the top and bottom side

o        Includes 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws

o        Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm

o        Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI SSD, no driver required

o        Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD

o        Provides 3.3V5A High Power to M.2 NVMe SSD

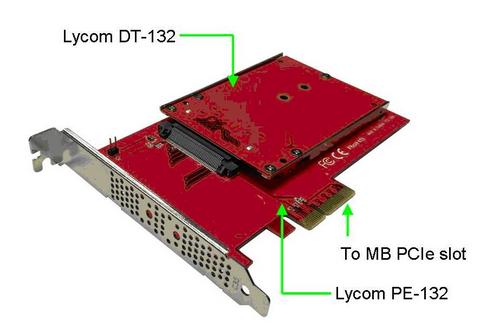

o        Require a SFF-8643 to U.2 Cable connection to similar PCIe x4 NVMe Host PE-131 ( http://www.lycom.com.tw/PE-131.htm ) or directly attached to PE-132 ( http://www.lycom.com.tw/PE-132.htm )

o        Fully RoHS compliant

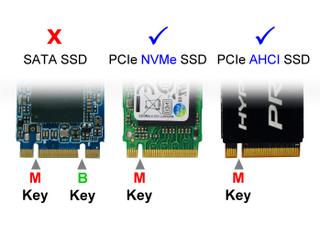

*** SATA Host can NOT work with this PCIe NVMe Based Adapter

*** SATA Based M.2 SSD module can NOT work with this PCIe NVMe Based Adapter
