PE-131

PCIe 4.0 x4 Host Adapter with miniSAS HD 36P for U.2 NVMe SSD

¡@



¡@



¡@

¡@

Utilize an Extremely High Performance Enterprise-Class PCIe-NVMe 2.5¡¨ U.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!

¡@

FEATURES

¡@

o        PCIe-NVMe U.2 2.5¡¨ SSD work with main board PCIe x4 bus slot

o        PCI Express 3.0 x4 Lane Host adapter

o        Supports PCIe 4.0, PCIe 3.0 motherboard

o        Compliant with PCI Express 4.0

o        Mini-SAS HD SFF-8643 36Pin connector

o        Supports PCIe Gen4 and Gen3 NVMe U.2 SFF-8639 2.5¡¨ SSD

o        Support PCIe L1 Power Management Substates with CLKREQ

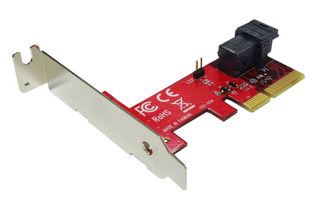

o        Low Profile PCIe Form Factor

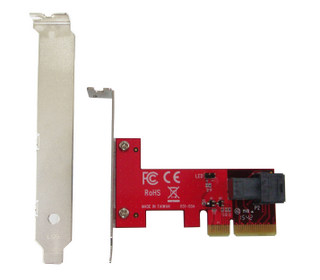

o        Low Profile PCIe bracket on board and Regular size bracket included

o        Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe SSD, no driver required

o        Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD

o        Require an empty PCIe x4 or x8 or x16 slot

      Fully RoHS compliant

¡@
