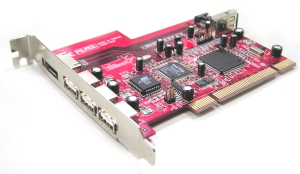

UB-200

USB 2.0 + eSATA Combo 7Ports PCI Host Adapter

Discontinued!
　

FEATURES

o        2 Ports SATA (1.5Gbps) and 5 Ports USB 2.0 (1.5 / 12 / 480 Mbps) PCI host interface

o        Compliant with PCI Specification revision 2.2, 32 bit, 33MHz

o        Integrated PCI DMA engine

o        Completely with drivers for 64bit / 32bit Windows 7, Vista, 2000, 2003 server, XP, 98, and ME

o        Linux kernel version of 2.4.18-14 or later has built-in driver support

o        Fully RoHS compliant

1. USB 2.0

o        Five USB2.0 / USB1.1 ports (3 External + 2 Internal)

o        Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)

o        Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

o        Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95

o        All USB ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction

o        Chipset : NEC

2. High Speed Serial ATA

o        Independent internal two ports high speed Native Serial ATA

o        One external eSATA and one internal SATA connector

o        Serial ATA data rates 1.5Gbps

o        48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

o        Fully compliant with Serial ATA 1.0a specifications

o        Supports Spread Spectrum in receiver

o        Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes

o        Hot-plug capability

o        Two Pin header on board for LED connection

o        Chipset : Silicon Image
