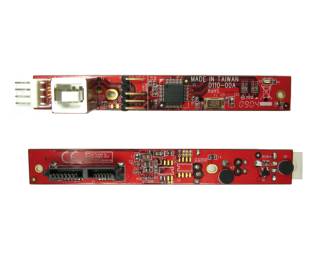

UB-110

SATA Slimline ODD to USB2.0 Host mini Vertical Adapter

Slim SATA Optical Device --- > USB2.0 Optical Drive!

Convert All Slim Type SATA ODD to USB2.0 interface for your Rack Mount Server!

FEATURES

o        Support any type of SATA Slim device

o        Adapter board directly attached and screwed to slim ODD

o        Ideal for Rack Mount System, Server, Network Attached Storage and Mini ITX

o        Both USB2.0 5Pin Pin Header and USB2.0 Type-B connector for host interface

o        USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND

o        PCBA and SATA slim drive powered by Host USB bus 5V input, or PC power supply input if Molex 4Pin floppy Power connector 12V & 5V connected

o        Mounting Screws included

o        USB2.0 High transfer rate of 480Mbps

o        Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5 /12/ 480 Mbps)

o        Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

o        Supports Spread Spectrum in receiver

o        Compliant with Serial ATA 1.0a specifications

o        Windows and Mac OS Built-in USB2.0 drivers support

o  Fully RoHS Compliant
