UB-109

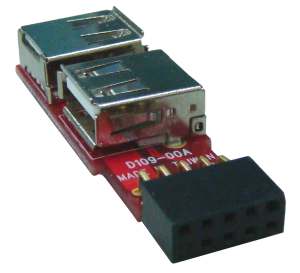

Motherboard 2x5 USB2 Pin Header to 2 USB A-type Adapter



Convert Motherboard standard 2x5 USB 10Pin Pin Header to 2 USB A-Type connectors!

FEATURES

  • 2x5 USB2 Pin Connector to Motherboard directly
  • 2 USB2 Type A downstream connectors on board for USB2 Devices
  • 2x5 USB2 Pin out Assignments
    5V,  D-,  D+,  GND,  NC
    5V,  D-,  D+,  GND,  Key
  • Supports USB 2.0 (Data Rate 1.5 /12 /480 Mbps)
  • Fully RoHS compliant
