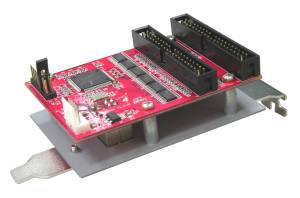

UB-104PC

4Bay IDEx4 Enclosure Board for PC Case (to USB2.0 Host)

Use much popular computer case and 4 IDE hard drives as a 4Bay Storage system with 1BigDisk, 2Disks or 4Disks configuration!



Supports PCI bracket for PC Case mounting

FEATURES

  • Supports PCI bracket and uses dominant PC Case as MultiBay Storage System
  • Control and Convert 4 internal IDE hard drive to USB 2.0 host.
  • USB2.0 B-Type connector supports High transfer rate of 480Mbps
  • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5 /12 /480 Mbps)
  • Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
  • Compliant with ATA specifications
  • Five LED Pin Headers for 4 devices & Power On
  • Supports three operation modes: 4Disks, 2Disks, 1Disk (BigDrive)
  • Maximum logical drive size up to 2 TByte
  • Hot-plug of USB2.0
  • Bridge Board with Metal bracket and Mounting hole of SCSI-1 (Centronic 50pin) Form Factor for 4bay Disk Array
  • No software driver needed for Windows ME, 2000, 2003, XP, Vista and Mac OS
  • Window 98 SE Driver available
  • Fully RoHS compliant
