UB-151

¡@

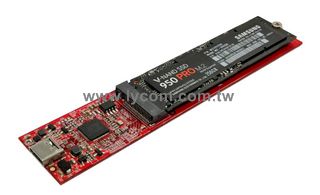

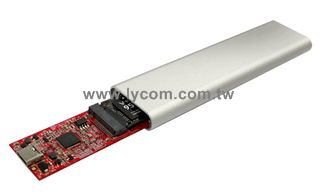

USB 3.1 Type-C Aluminum Enclosure for M.2 NVMe SSD

¡@    ¡@



 ¡@

Discontinued!

¡@

FEATURES

¡@

o        10Gbps USB 3.1 Type-C upstream connector on board

o        Directly to USB 3.1 Type-C Host Port via Type-C cable

o        Supports any size of available PCIe NVMe M.2 M Key 80mm, 60mm, 42mm SSD

o        M.2 NGFF type 2280-D5-M M Key socket on board

¡@

¡@

o        Movable M.2 NGFF stand-off and multiple plated-holes supports NVMe M Key type 2280, 2260 and 2242 SSD

o        Supports dual-sided SSD module 1.5mm component height on the top and bottom side

o        Compliant with NVM Express 1.3

o        Compliant with USB 3.1 Gen 1 and Gen 2 Specification

o        Compliant with USB Attached SCSI Protocol (UASP) Specification (Revision 4)

o        Supports USB 3.1 Gen1/ Gen2 power saving mode

o        Supports 10 Gbps, 5 Gbps, 480 Mbps transaction

o        PCBA and NVMe SSD powered by USB3.1 Type-C bus 5V

o        PCBA with aluminum case only, without NVMe M.2 SSD inside

o        Support TRIM

o        Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 and later OS in-box USB driver natively support, no additional driver required

o        Fully RoHS compliant

o        An available Type-C host port required, Type-A 5V 500mA bus power not enough for NVMe SSD that min 5.1Watt

o        Not support AHCI or SATA M.2 SSD

¡@
