UB-132

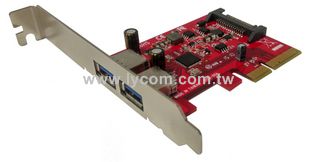

USB3.1 10Gbps Superspeed+ Low Profile PCIe x4 Host Adapte

USB3.1 SuperSpeed+ 10Gbps in one Low Profile PCIe x4 Lane Host Adapter to support all kind of 1.5Mbps, 12Mbps, 480Mbps 5Gbps and 10Gbps USB Devices

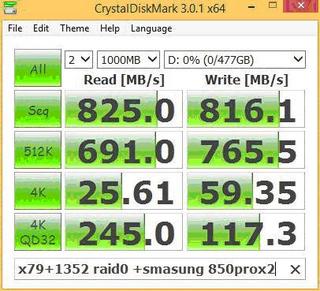

                    UB-132 Performance Data 825MB/s

FEATURES

o        USB3.1 PCIe x4 Lane Host Adapter supports PCIe Gen2 x2 or PCIe Gen3 x1

o        Two USB 3.1 Type A downstream connectors on board

o        Supports PCIe 1.0 and PCIe 2.0 and PCIe 3.0 motherboard

o        Compliant with Universal Serial Bus 3.1 Specification Revision 1.0

o        Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1

o        Compliant with USB Attached SCSI Protocol Specification 1.0

o        All USB ports can handle SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction

o        Support USB3.1, USB3.0, USB2.0 and USB1.1 devices

o        Compliant with PCI Express Specification 3.0

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and Low Profile PCIe Bracket included

o        Supports 2A USB 5V bus power one USB 3.1 port

o        USB3.1 5V bus power automatically from PCIe bus or from optional 15Pin SATA power connector when 15Pin cable 12V power in

o        Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance

o        Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 and later OS in-box USB  driver natively support UASP, no additional driver required

o        Provides Asmedia 64bit and 32bit Windows 7, Vista, XP and 64bit 2008 R2 driver

o        Mac 10.11 in-box driver Not support USB3.1

o        Fully RoHS compliant
