UB-130

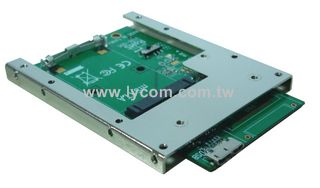

mSATA SSD to External & Internal USB 3.0 Converter with 2.5” Drive Frame and PCIe Bracket

Discontinued!

FEATURES

o        USB 3.0 Micro-B upstream connector on board

o        Supports 6Gbps, 3Gbps and 1.5Gbps mSATA Solid State Disk

o        Supports USB3.0 and USB2.0 Host

o        Compliant with Universal Serial Bus 3.0 Specification Revision 1.0

o        Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction

o        Compliant with Serial ATA Specification Revision 2.6

o        Supports Serial ATA transfer rate of 6.0 Gbps

o        Supports ATA/ATAPI Packet Command Set

o        Supports ATA/ATAPI LBA 48 Addressing mode

o        Latch type mSATA connector on board, no need the screw to retain mSATA SSD

o        Write Protect Mode can prevent the data writing to mSATA SSD

o        Low Profile PCIe Form Factor

o        Regular size and Low Profile PCIe Brackets included

o        Includes 2.5 “ hard drive 7mm height metal frame and screws

o        Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm

o        Support Windows, Mac and Linux, no driver required

o        PCBA and mSATA SSD powered by USB Bus 5V input

o        Fully RoHS compliant
