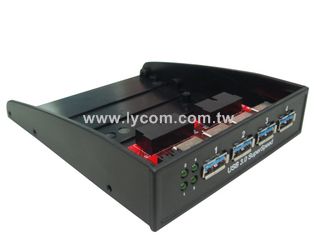

UB-122F

USB 3.0 4Ports Internal Connector to Type A Connector Board with 3.5” Front Frame & PCIe Bracket

Connect PC main board USB 3.0 Internal Connector (USB3 ICC) Max 4Ports to USB 3.0 Type A connectors with 3.5” Front Panel & PCIe bracket for convenient external front & back accessing!

FEATURES

o        Compliant with Universal Serial Bus 3.0 Specification Revision 1.0

o        Four USB 3.0 Type A downstream ports

o        Two 20 Pin USB 3.0 connectors (USB3 ICC) for main board connection

o        Support SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction

o        Support any USB3.0, USB2.0 and USB1.1 devices

o        Transparent to the operating system and does not require any drivers

o        Support Microsoft Windows, Mac OS, Linux

o        Includes one additional PCIe (PCI) bracket

o        Fully RoHS compliant
