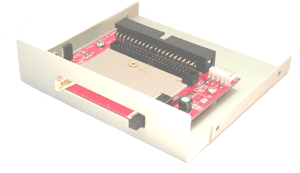

ST-308F

IDE – CF Bridge (Front Mode)







Convert IDE port (40Pin & 44Pin) to support bootable CF Card !

Connect This floppy bay to standard IDE  40Pin or 44Pin cable and make your PC system to support CompactFlash device.

This is a convenient 3.5” drive frame that allows CompactFlash modules to be used in any computer system that has a standard IDE 40 pin or 44 pin port.



FEATURES

  • Supports 40 pin & 44 pin IDE standard Port both
  • 3.5 “ drive frame for 3.5” bay

  • For any computer case , mini computer, embedded system, iPC and Rackmount case

  • Support CompactFlashTM cards (Type I & II) or a IBM MicrodriveTM

  • Transparent to the operating system and does not require any drivers

  • The CF card can be the primary bootable device containing the OS and application

  • Supports jumper for master and slave setting

  • Push bottom ejector on board

  • Powered by 4 pin floppy connector or 44 pin IDE Port

  • Fully RoHS compliant



FEATURES

  • ST308F-i:    Front Use Bridge Board with front Bay Bracket (floppy size, Ivory Color)

  • ST308F-b:   Front Use Bridge Board with front Bay Bracket (floppy size, Black Color)
