ST-307

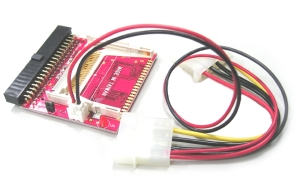

IDE – CF Bridge to 40Pin IDE Port (Connector Mode)

Convert IDE port to support CF Card !

Plug This bridge board to standard IDE port and make your PC system to support CompactFlash device.

This is a convenient interface that allows CompactFlash modules to be used in any system that has a standard IDE 40 pin connector.

　

FEATURES

  • 40 pin IDE standard Port
  • Support CompactFlashTM cards (Type I & II) or a IBM MicrodriveTM
  • Transparent to the operating system and does not require any drivers
  • The CF card can be the primary boot device containing the OS and application.
  • Fully RoHS compliant
  • IDE standard can NOT support the hot-plug of Compact Flash
