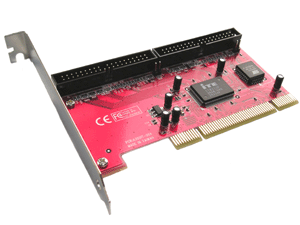

ST-305iT

ATA-133 RAID PCI Host

Discontinued !

FEATURES

• Provides 2 Brackets to Support Low profile PCI and Regular size PCI in one card
• 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

• Provides RAID 0 (Stripping) to greatly increase the performance of data transfer by simultaneously writing data to 2 drives

• Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives

• RAID 0+1 (Mirrored-Stripping) combine both Striping and Mirroring technologies to provide both the performance enhancements that come from Striping and the data availability and integrity that comes from Mirroring

• Supports two independent Ultra ATA-133 channels

• Supports full speed burst transfers on the ATA bus

• Supports software-controlled ATA bus tri-state

• Features one 256-byte FIFO (32-bit x 64 deep) per IDE channel for host reads and writes

• Features ATA to PCI interrupt masking

• Features command buffering from the PCI to ATA

• Compliant with PCI Specification, revision 2.2

• Integrated PCI DMA engines

• 32 bit, 33MHz fully compliant PCI host interface

• Low Profile Form Factor

• Supports Windows 98, Windows Millennium, Windows NT 4.0, Windows 2000, XP and Linux

• Fully RoHS compliant
