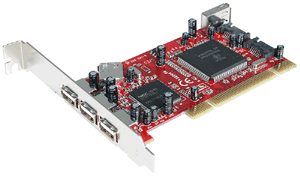

ST-211
SATA RAID + USB 2.0 Combo Low Profile PCI Host Adapter
¡@
Integrates SATA RAID (1.5Gbps) and USB2.0 (480Mbps) in Low Profile PCI Host Adapter to upgrade your computer to have all advanced features!
FEATURES
¡@
o 2 Ports SATA RAID (1.5Gbps), 5 Ports USB2.0 (480Mbps) PCI host interface
o Compliant with PCI Specification revision 2.2, 32 bit, 33MHz
o Integrated PCI DMA engine
o Low Profile Form Factor
o Provides Low profile PCI and Regular size PCI two brackets
o Supports 32bit /64bit Windows 7, Vista, XP, 2000, 2003 server
o Fully RoHS compliant
¡@
1. Serial ATA
¡@
o Independent two ports Native Serial ATA
o Serial ATA data rates 1.5Gbps
o 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
o Fully compliant with Serial ATA 1.0a specifications
o Supports Spread Spectrum in receiver
o Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes
o Provides RAID 0 (Stripping) to greatly increase the performance of data transfer by simultaneously reading data from 2 drives
o Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives
o Acts as NON-RAID card when BIOS not configured to RAID mode
o Chipset : SiliconImage
¡@
2. USB 2.0
¡@
o 3 External USB Ports and 2 Internal USB Ports
o Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
o Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
o Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
o All USB ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction
o Chipset : NEC
¡@
SPECIFICATION
¡@
o Bus Architecture: Low Profile 32bit PCI Bus (MD1)
¡@
o Dimension: 120mm x 64mm
¡@
o PCB: 4 Layers / FR-4 94V0 / 0.5 oz / 1.6mm
¡@
o USB Ports: 3 External and 2 Internal USB2.0 Ports
¡@
o SATA Ports: 2 Serial ATA Ports
¡@
o Temperature: Operating +5 ¢J to ¡Ï45 ¢J
Non Operating ¡Ð25 ¢J to ¡Ï70 ¢J
¡@
o Humidity: Operating 20¢H to 80¢H
Non Operating 15% to 90¢H
¡@
o EMC Compliance: EN55022/1998, EN55024/1998 (European Community)
FCC Part 15 Class B (DoC) (US)
¡@
