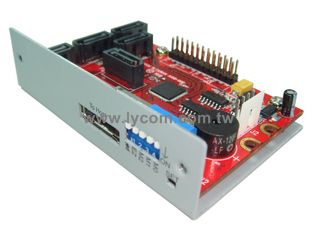

ST-158RM
¡@
eSATA to 5 Drives H/W RAID Adapter with SCSI-1 Frame
Expand Host eSATA I or II or III one port to 5 units SATA drives with Hardware RAID (R0, R1, R3, R5, JBOD) supported in 1U Rack Mount system
FEATURES
¡@
o 5Ports Native SATA II 3Gbps hardware RAID Adapter
o Shielded and durable eSATA connector for host connection
o Hardware Raid Board with SCSI-1 (Centronic 50pin) Metal frame and Mounting hole
o Hardware RAID controller on board for max performance
o Supports eSATA I, eSATA II, eSATA III host connection
o When SATA II, SATA III host connection, support optical drives and Hardware Raid 0, Raid 1, Raid 3, Raid 5, Clone, JBOD (BigDrive mode), Individual Drives (PM mode)
o When SATA I host connection, support Hardware Raid 0, Raid 1, Raid 3, Raid 5, Clone, JBOD (BigDrive)
o DIP Switch on board for easy Hardware RAID configuration
o Supports 48-bit LBA addressing
o Supports Native Command Queue (NCQ)
o Supports Hot-Plug
o 12 LED Pin Headers for active LED of Host & 5 SATA devices
o Supports SATA 1, SATA II, SATA III drives
o Supports Windows 7, Vista, XP, 2003, 2008, Mac OS X and Linux kernel 2.4 and above
o Includes Windows GUI for RAID management and configuration
o Fully RoHS compliant
¡@
