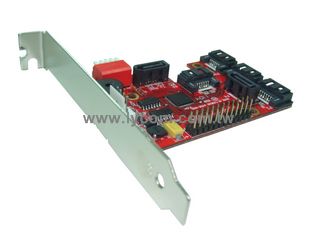

ST-158

¡@

SATA II-3Gbps 1-To-5Ports H/W RAID Host Adapter

Discontinued!

FEATURES

¡@

o        5Ports Native SATA II 3Gbps hardware RAID Adapter

o        Expand one Main Board SATA port to five SATA Drives connection

o        Hardware RAID controller on board for max performance

      o    Supports SATA I, SATA II, SATA III host connection

o        When SATA II, SATA III host connection, support optical drives and Hardware Raid 0, Raid 1, Raid 3, Raid 5, Clone, JBOD (BigDrive mode), Individual Drives (PM mode)

o        When SATA I host connection, support Hardware Raid 0, Raid 1, Raid 3, Raid 5, Clone, JBOD (BigDrive)

o        DIP Switch on board for easy Hardware RAID configuration

o        Supports 48-bit LBA addressing

o        Supports Native Command Queue (NCQ)

o        Supports Hot-Plug

o        12 LED Pin Headers for active LED of Host & 5 SATA devices

o        Supports SATA 1, SATA II, SATA III drives

o        Low Profile PCI Form Factor

      o   Includes Low Profile and regular size PCI two brackets

o        Supports Windows 7, Vista, XP, 2003, 2008, Mac OS X and Linux kernel 2.4 and above

o        Includes Windows GUI for RAID management and configuration

o        Require an empty mechanical space of PCI or PCIe slot

      o    Fully RoHS compliant

¡@
