ST-156

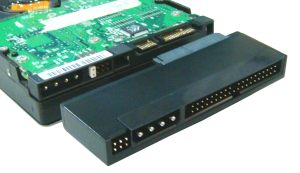

Housing Bridge Adapter for SATA Drive to IDE Main Board
Discontinued!
ST-106-2 Instead!
FEATURES
o SATA II 3Gbps Adapter Board with Housing
o Supports any type of SATA III, SATA II and SATA I Device (Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk)
o Convert SATA Drive like a standard IDE/ATAPI Drive
o 48 bits LBA can Break Capacity-Limit to Support HDD max 144,115,188GB
o Compliant with Serial ATA 2.6
o ATA/ATAPI PIO mode data transfer
o ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
o ATA/ATAPI-7 Streaming feature set
o Tag Command Queuing (Max 32 entries)
o Support IDE Master, Slave and Cable Select Modes
o 100% OS-transparent hardware bridge converter to support PC, MAC and Linux, no driver required
o Fully RoHS compliant
