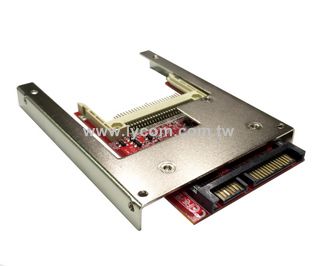

ST-137M2

@

CF to 2.5 SATA Disk Bridge Board with 2.5 Metal Frame

Best Solution for embedded application that Converts Compact Flash Memory card to low power & high performance & no noise 2.5 inch SATA Hard Drive!

@

FEATURES

@

o        22 pin SATA (Signals and Power) male connector on board

o        Support CompactFlashTM cards (Type I & II) or a IBM MicrodriveTM

o        The CF card can be the primary bootable device containing the OS and application.

o        Support any size of CF memory card up to 2TB

o        Includes 9.5mm height 2.5 drive metal frame with 8 mounting holes and 4 HDD screws

o        Dimension of PCBA with 2.5 frame : 100.45mm x 69.85mm x 9.5mm

o        Fully compliant with 2.5 SATA drive form factor

o        Support DMA and UDMA mode

o        100% OS-transparent hardware bridge converter to support PC, MAC and Linux, no driver required

o        Fully RoHS compliant

@
