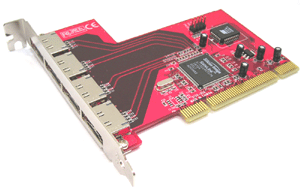

ST-134e

RAID eSATA-150 External 4Ports PCI Host

　

eSATA 4Ports RAID !

Add LyCOM Reliable and Eye-Pattern Proven 1,500Mbps of Serial ATA External 4 Ports and RAID 0, RAID 1, RAID 0+1, RAID 1+S(Mirrored-Sparing) to your system

FEATURES

  • Four shielded and durable eSATA external connectors
  • 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

  • Four high speed Serial ATA interface ports, each supporting 1st generation Serial ATA data rates 1.5Gb/s

  • Hot-plug capability

  • Fully compliant with Serial ATA 1.5G specifications

  • Provides RAID 0 (Stripping) to greatly increase the performance of data transfer by simultaneously writing data to multiple drives

  • Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on two drives

  • RAID 0+1 (Mirrored-Stripping) combine both Striping and Mirroring technologies to provide both the performance enhancements that come from Striping and the data availability and integrity that comes from Mirroring

  • RAID 1+S (Mirrored-sparing) can automatically replace the failed drive and rebuild the system when booting HDD is failed

  • Supports ATAPI commands

  • Supports Spread Spectrum in receiver

  • Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes

  • Compliant with PCI Specification, revision 2.2

  • Integrated PCI DMA engines

  • Four Pin header on board for LED connection

  • 32 bit, 33/66MHz fully compliant PCI host interface

  • Supports Windows 98, Millennium, NT 4.0, 2000, XP, 2003 and Linux, Novell Netware

  • Acts as NON-RAID when BIOS not configured RAID

  • Supports 64bit / 32bit Windows Vista

  • Linux 32bit / 64bit drivers support for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 4.0, RHEL 4.0 Up1, SuSE 9.0 SP1 RC5, SuSE Pro 9.2, SuSE Pro 9.3. See SiliconImage SiI3114.

  • Fully RoHS compliant

  • Chipset : SiI3114
