ST-124NR

SATA II – 3Gbps 4Ports Low Profile PCI Host

Native SATA II - 300 4Ports with Port Multiplier, NCQ!

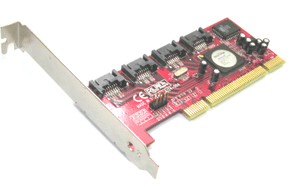

This 32bit PCI Host Adapter can upgrade your desktop computer to have four SATA II Channels. The board provides a 66 MHz PCI interface on the host side and four fully compliant SATA II 3Gbps ports on the device side to access Serial ATA internal storage devices such as hard disk drive, ZIP drive, CD-ROM, CD-RW, DVD-ROM.

FEATURES

  • Provides 2 Brackets to Support Low profile PCI and Regular size PCI in one card

  • 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

1. PCI

  • Compliant with PCI Specification, revision 2.3

  • Supports 66 MHz PCI with 32-bit data
  • Internal application interface multiplexed to 4 ports
  • All registers appear in unified memory space
  • Full-chip command completion status accessible with single PCI burst access
  • I/O port access to register space
  • Low Profile PCI form factor

2. High Speed Serial ATA

  • Fully compliant with Serial ATA 1.0a and Serial ATA II Extensions to Serial ATA 1.0a Specifications revision 1.1

  • Hot-plug capability

  • Supports Serial ATA Generation 2 transfer rate of 3.0 Gb/s

  • Supports SATA II First-party DMA commands for Native Command Queuing (NCQ)

  • Supports Serial ATA II Port Multiplier 1.0 Specifications revision 1.1

  • Plesiochronous, Single PLL architecture, 1 PLL for 4 ports

  • Supports four independent Serial ATA channels

  • Independent Link, Transport, data FIFO, command fetch, scatter/gather, and command execution

  • 31 Commands and Scatter/Gather Tables per Port

  • Supports bootable drive

  • Four Pin header on board for LED connection

  • Completely with drivers for Windows 2000 ,XP and 2003 Serve

  • Supports 64bit / 32bit Windows Vista

  • Mac OS X v10.4 Non-booting driver supported by SiliconImage SiI3124.

  • Linux 32bit / 64bit drivers supported for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 3.0 Up2, RHEL 4.0, RHEL 4.0 Up1, SuSE 9.0 SP1 RC5, SuSE Pro 9.3 by SiliconImage SiI3124.　

  • Fully RoHS compliant
