ST-117

4Ports Native SATA-150 2External +2Internal + 5V2A Bracket Power PCI Host

Native SATA 2External +2Internal Ports with Sufficient 5V/2000mA DC Output !

Add LyCOM Reliable and Eye-Pattern Proven 1,500Mbps of Serial ATA 2 External Ports and 2 Standard Internal Ports to your system

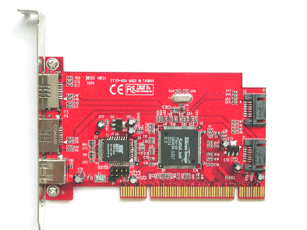

This PCI Host Adapter can upgrade your desktop computer to have four Serial ATA Channels. The board provides a 32bit, 33/66 MHz PCI interface on the host side and four, fully compliant Serial ATA ports on the device side to access Serial ATA mobile external storage devices and standard internal media such as hard disk drive, ZIP drive, CD-ROM, CD-RW, DVD-ROM.

FEATURES

  • Two special External shielded and durable SATA connectors for Mobile HDD, Mobile CD-ROM, Mobile DVD, Mobile CD-RW
  • 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

  • Sufficient power current 2A to supply 5V External Device

  • Hot-plug capability

  • Four high speed Native Serial ATA interface ports, each supporting 1st generation Serial ATA data rates 1.5Gb/s

  • Fully compliant with Serial ATA 1.5G specifications

  • Supports ATAPI devices

  • Supports Spread Spectrum in receiver

  • Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes

  • Compliant with PCI Specification, revision 2.3

  • Four Pin header on board for LED connection

  • Integrated PCI DMA engines

  • 32 bit, 33/66MHz fully compliant PCI host interface

  • USB-like Connector on board to provide 2000mA / 5V DC power output for External Mobile Devices

  • Supports Windows 98, Windows Millennium, Windows NT 4.0, Windows 2000, XP, 2003 and Linux, Novell Netware
