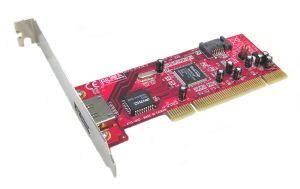

ST-113e

1External eSATA +1 Internal SATA 2Ports Low Profile PCI Host Adapter

Add Low Profile PCI 1.5Gbps External eSATA 1Port and Standard Internal SATA 1Port on your PC System to Support Mobile storage device and Internal SATA Device!

FEATURES

o        Independent internal SATA 1port and external eSATA 1port high speed Native Serial ATA

o        Serial ATA data rates 1.5Gbps

o        48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

o        Fully compliant with Serial ATA 1.0a specifications

o        Supports Spread Spectrum in receiver

o        Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes

o        Compliant with PCI Specification, revision 2.3 Integrated PCI DMA engines

o        32 bit, 66MHz fully compliant PCI host interface

o        Low Profile PCI form factor

o  Includes Low profile PCI and Regular size PCI two Brackets

o        Two LED Pin headers on board for HDD LED connection

o        Completely with drivers for 64bit / 32bit Windows 7, Vista, 2000, 2003 server, XP, 98, and ME

o        Linux kernel version of 2.4.18-14 or later has built-in driver support

o        Chipset : SiliconImage SiI3x12

      o  Fully RoHS compliant

SPECIFICATION

o        Bus Architecture:   Low Profile 32bit PCI Bus (MD1)

o        Dimension:         120mm x 46mm

o        PCB:              4 Layers / FR-4 94V0 / 0.5 oz / 1.6mm

o        SATA Ports:       2 Serial ATA Ports

o        Temperature:      Operating       +5 ℃  to  ＋45 ℃

                      Non Operating －25 ℃  to  ＋70 ℃

o        Humidity:           Operating        20％ to  80％

                      Non Operating    15% to  90％

o        EMC Compliance:  EN55022/1998, EN55024/1998 (European Community)

                         FCC Part 15 Class B (DoC) (US)

o        Power Consumption:   5V / 470mA
