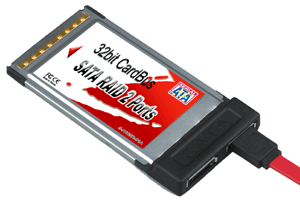

ST-109R

RAID SATA-150 2 Port CardBus PC Card

Enjoy Mobile SATA RAID 0 & RAID 1 !

Add SATA 2 Ports RAID 0 or RAID 1 on your Notebook Computer to Access External Storage Devices and Support HDD larger than137GB at 1.5Gbps Very High Performance

FEATURES

• Supports High Speed Transfer Rate 1,500Mbps
• 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
• Special enhanced SATA shielded connectors for Mobile HDD, Mobile CD-ROM, Mobile DVD, Mobile CD-RW
• PC Card 32 bit CardBus fully compliant.
• Dual high speed Serial ATA interface ports, each supporting 1st generation Serial ATA data rates 1.5Gb/s
• Fully compliant with Serial ATA 1.0a specifications
• Provides RAID 0 (Stripping) to greatly increase the performance of data transfer by simultaneously writing data to 2 drives
• Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives
• Supports Spread Spectrum in receiver
• Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes
• Can not support Hot plug if RAID enabled
• Completely with drivers for Windows XP, Windows 2000 and Windows 2003
