ST-109

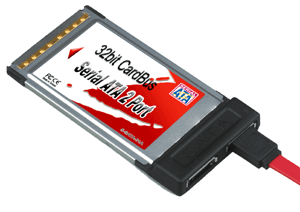

External SATA (L-Type connector) 2 Port 32bit CardBus PC Card

Add external SATA 2Ports with L-Type connector on your Notebook Computer to Access External Storage Devices and Support HDD larger than137GB!

FEATURES

@

o        Supports SATA Transfer Rate 1.5Gbps

o        Two port external SATA with enhanced L-Type shielding SATA connectors

o        PC Card 32 bit CardBus fully compliant.

o        Fully compliant with Serial ATA 1.0a specifications

o        Two LEDs indicate for HDD accessing

o        48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

o        Supports Spread Spectrum in receiver

o        Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes

o        Completely with drivers for 64bit / 32bit Windows 7, Vista, 2000, 2003 server, XP, 98, and ME

o        Linux kernel version of 2.4.18-14 or later has built-in driver support

o        Chipset : SiliconImage SiI3x12

o        Fully RoHS compliant

@
