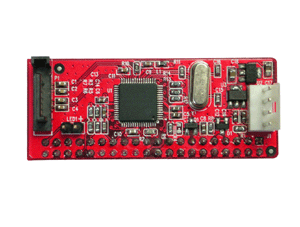

ST-101L

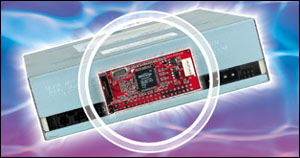

Mini Vertical Converter Board for IDE Device to SATA MotherBoard









Convert all kind of IDE device to work with SATA I, SATAII or SATA III Host Controller!

FEATURES



o        Supports and attaches any type of ATAPI, ATA/133, ATA/100, ATA/66, ATA/33, EIDE and IDE storage device (DVD, DVD-RAM, MO, CD-ROM, CD-RW, Hard Disk, ….)

o        48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

o        Mini vertical Board

o        Compliant with Serial ATA 1.0a specifications

o        SATA transfer rate 1.5Gbps

o        Supports Spread Spectrum in receiver

o        Compliant with ATA specifications

o        Compatible with Ultra ATA 133

o        Automatically decode the ATAPI command to know the UDMA direction.

o        100% hardware bridge converter to support PC, MAC and Linux environment, no driver required

o        Chipset : SiliconImage or Sunplus 3811

o        Fully RoHS compliant
