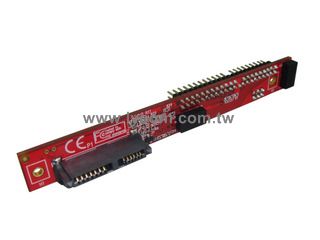

ST-162

¡@

SATA Slimline ODD to Main Board 44Pin IDE Vertical mini Converter

¡@

SATA Slimline Optical Drive --- > IDE Slim 44Pin ODD with Master / Slave Jumper!

FEATURES

¡@

o        Slim size board supports SATA slim ODD

o        44Pin 2.0mm 2.5¡¨ HDD IDE male connectors for power and signals from main board

o        Compliant with Serial ATA 2.6

o        Supports Serial ATA Generation 2 transfer rate of 3Gbps

o        Jumper supports Master, Slave and Cable Select Modes

o        ATA/ATAPI PIO mode data transfer

o        ATA/ATAPI UDMA data transfer rate of 150, 100, 66, 44, 33, 25, 16.7 MB/s

o        Tag Command Queuing (Max 32 entries)

o        SATA Hot-plug

o        SATA Power Save modes

o        ATA/ATAPI-7 Streaming feature set

o        100% OS-transparent hardware bridge converter to support PC, MAC and Linux, no driver required

Fully RoHS Compliant

¡@
