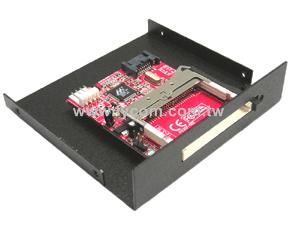

ST-123CF-b

SATA to CF Converter with Front Bay Bracket (Black)

Front use, Bootable and Hot Plug Compact Flash through SATA Host port connection!
　

FEATURES

o        Compliant with Serial ATA 2.6 specifications and High transfer rate of 1.5 and 3Gbps

o        Suit for any computer case, mini computer, embedded system, iPC and Rackmount cabinet

o        Support CompactFlashTM cards (Type I & Type II) or a IBM MicrodriveTM

o        CF card can be the primary bootable device containing the OS and software

o        On board activity LED for CF access

o        CF Push bottom ejector on board

o        CF and PCBA Powered by 4Pin floppy power connector

o        CF 3.3V / 5V Voltage selection

o        ATA/ATAPI PIO mode data transfer

o        ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s

o        ATA/ATAPI-7 Streaming feature set

o        ATA/ATAPI 48-bit address feature set

o        SATA hot-plug

o        100% OS-transparent hardware bridge adapter to support Windows, MAC and Linux, no driver required

o        Fully RoHS compliant

MODELS

o        ST123CF-b : Bridge Board with front Bay Bracket (floppy size, Black Color)

o        ST123CF-i :  Bridge Board with front Bay Bracket (floppy size, Ivory Color)

o        ST123CF :   Bridge Board with Low Profile PCI Bracket & Regular PCI Bracket
