Pi-113

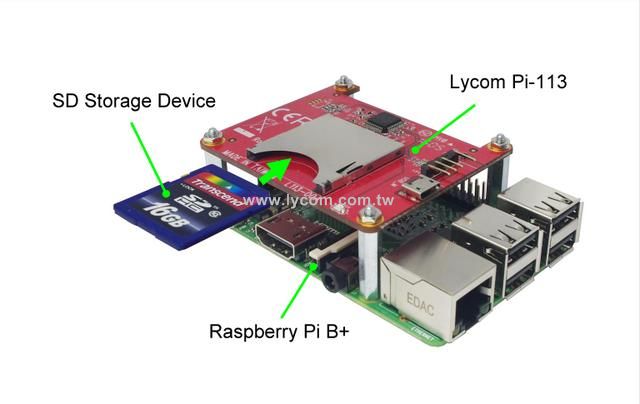

USB 2.0 to SD 3.0 (SDXC) Converter Board

Easy install and utilize SD Drive to your embedded Raspberry Pi via USB!

FEATURES

o        Connect USB Host to SD storage device

o        Support 2TB UHS-1（104 MB/s）

o        Support SD spec V 3.0 SDXC (Secure Digital eXtended Capacity)

o        Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)

o        Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

o        Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95

o        Both USB micro-B connector and USB 5Pin Pinheader on board to host connection

o        USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND

o        On board activity LED for SD access

o        Includes Multi-Pi mounting accessory of standoff & nut & screw for Raspberry Pi

o        Fully RoHS compliant
