Pi-112

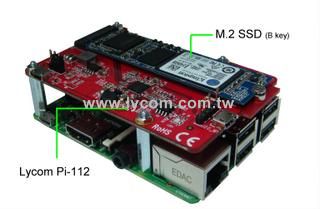

Raspberry Pi USB to M.2 SATA SSD Converter Board

@

@

   @
@
@

Easy install and utilize M.2 NGFF SATA SSD Drive to your embedded Raspberry Pi!

@

FEATURES

@

o        Install 80/60/42/30 mm M.2 SATA SSD to Raspberry Pi via USB

@

o        Both USB micro-B connector and USB 5Pin Pinheader connection to Raspberry Pi

o        USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND

o        On board activity LED for M.2 access

o        M.2 NGFF type 2280-D5-B B Key Socket on board

@

@

o        Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD

o        Supports dual-sided SSD module 1.5mm component height on the top and bottom side

o        Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)

o        Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

o        Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95

o        PCBA powered by Raspberry Pi USB Bus

o        Jumper selection either PWR-U external 5V sufficient power or Raspberry Pi own USB bus power to M.2 SSD

o    Fully RoHS compliant

@
