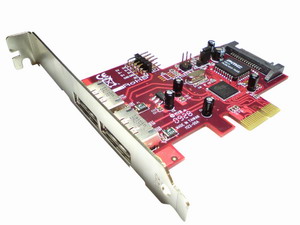

PE-122

Hybrid 12V+5V Power over eSATA and USB2.0 Low Profile PCIe 2Ports Host Adapter

FEATURE

• Max 12V2A + 5V1A bus Power over 3Gbps eSATA in 2 individual Port

• Convert Motherboard 2 internal USB Ports to external A-Type USB

• Hybrid connector support eSATA and USB2.0 coexisting in a connector space

• 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

• Supports 1-lane 2.5Gbps PCI Express

• Hot-plug capability

• Supports SATA II transfer rate of 3.0Gbps

• Fully compliant with Serial ATA 1.0 specifications

• Supports Legacy Command Queuing (LCQ)

• Supports Native Command Queuing (NCQ)

• Supports Non-zero offsets NCQ

• Supports FIS-based switching with Port Multipliers

• Sufficient Max 12V2A and 5V1A each port from SATA 15Pin Power supply

• Low Profile PCI Form Factor

• Includes an additional Low profile Bracket

• 10Pin Pin header for USB2.0 connection from Motherboard

• BIOS ON / OFF jumper on board

• Two Pin headers on board for LED connection

• Fully 100% compatible with regular eSATA cable, USB A-Type Cable and Power-over-eSATA cable

• Completely with SATA drivers for Windows Vista, NT, 2000, and Server 2003

• Mac OS X v10.4.9, v10.4.10, V10.5.1 Non-booting SATA driver supported by SiliconImage SiI3132.

• Linux 32bit / 64bit SATA drivers supported for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 4.0, RHEL 4.0 Up1, SuSE 9.0 SP1 RC5, SuSE Pro 9.3 by SiliconImage SiI3132.

• Motherboard 2 free USB ports is required

• Chipset : SiI3132

• Fully RoHS compliant
