PE-107

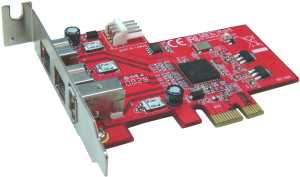

1394b & 1394a 3Ports Low Profile PCIe Host Adapter (TI chipset)

Add 2 Ports 9-Pin IEEE 1394b (FireWire 800) and 1Port 6-Pin 1394a at Low Profile PCIe card to Transmit and Receive Data at 800/ 400 / 200 / 100 Mbps!

FEATURES



 1. PCI Express



o        Compliant with PCI Express Specification, revision 1.1

o        1-lane 2.5Gbps PCI Express host interface

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and an additional Low Profile bracket included

o        Fully RoHS compliant



2. IEEE 1394 (FireWire 800 /400 /200 /100)



o        Two Bilingual P1394b 9-Pin Ports and one 1394a 6-Pin Port

o        Fully supports Provisions of IEEE P1394b-2002

o        Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995 Standard

o        Fully compliant with 1394 Open Host Controller Interface (OHCI) Spec 1.1 and Rev 1.2 Draft

o        Supports data transfer rate up to 800 Mbps

o        Two Bilingual 1394b 9-pin Ports at S800 or S400b speed

o        One 1394a-2000 Fully Compliant 6-Pin Port at S400, S200, S100 speed

o        On Board Molex mini 4Pin Power connector to have sufficient 1394 1.5A/12V bus power from PC power supply

o        Supports Plug and Play

o        OS Built-in driver support in Win98, ME, XP SP3, Win7, Win8, Win10, Mac OS X v10.2.4 or newer, FreeBSD, Linux, NetBSD, Haiku

o        ubCoreTM free driver support 32bit / 64bit Windows Vista, XP, 2003, 2008, 2000

o        Chipset : TI XIO2213
