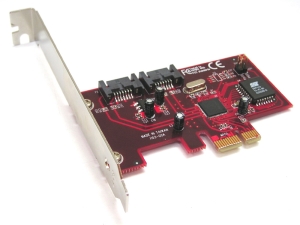

RAID5 SATA II V 3Gbps Internal 2 Ports Low Profile PCIe Host Host Adapter



2Ports 3Gbps SATA II PCI Express x1 host board to support NCQ, Port Multiplier, Raid5, Raid10, Raid0, Raid1and JBOD!



o        Independent Internal SATA II 2Ports

o        1-lane 2.5Gbps PCI Express host adapter

o        Low Profile PCIe Form Factor

o        Includes Low Profile PCIe and regular size PCIe two Brackets

o        Supports SATA II transfer rate of 3.0Gbps

o        Fully compliant with Serial ATA 1.0 specifications

o        48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

o        Supports Legacy Command Queuing (LCQ)

o        Supports Native Command Queuing (NCQ)

o        Supports Non-zero offsets NCQ

o        Supports Out of order data delivery NCQ

o        Supports FIS-based switching with Port Multipliers

o        Two Pin headers on board for LED connection

o        Hot-plug capability

o        Supports RAID 5 (Distributed Parity RAID), RAID 0 (Stripping), RAID 1 (Mirroring), RAID 0+1 (Mirrored-Stripping) and JBOD

o        Raid 5 setting requires Port Multiplier board and 3rd Drive

o        Supports up to 5 drives in each RAID group, if through Port Multiplier

o        Jumper to enable / disable on board SATA BIOS

o        Completely with drivers for 32bit / 64bit Windows 7, Vista, 2000, XP and Server 2003

o        Mac OS X v10.4.9, v10.4.10, V10.5.1, V10.6.x Non-booting driver supported by SiliconImage

o        Linux 32bit / 64bit drivers supported for RHEL 4.0 Up2, RHEL 4.0 Up3, SuSE 9.0 SP2, SuSE 9.0 SP3 by SiliconImage

o        Fully RoHS compliant

Chipset : SiI3132
