PE-103

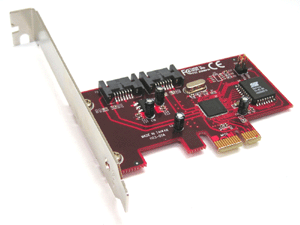

SATA II – 3Gbps 2Ports Low Profile PCIe Host Adapter

 Internal 2Ports 3Gbps SATA II with NCQ, Port Multiplier support in PCI Express x1 host adapter!

FEATURES

o        Independent Internal 2Port SATA II

o        Supports 1-lane 2.5Gbps PCI Express

o        Supports SATA II transfer rate of 3.0Gbps

o        Fully compliant with Serial ATA 1.0 specifications

o        Supports Legacy Command Queuing (LCQ)

o        Supports Native Command Queuing (NCQ)

o        Supports Non-zero offsets NCQ

o        Supports FIS-based switching with Port Multipliers

o        Low Profile PCI Form Factor

o        Includes Low profile and Regular size PCI two Brackets

o        Two Pin headers on board for LED connection

o        Hot-plug capability

o        48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

o        Jumper to enable / disable on board SATA BIOS

o        Completely with drivers for 32bit / 64bit Windows 7, Vista, 2000, XP and Server 2003

o        Mac OS X v10.4.9, v10.4.10, V10.5.1, v10.6 Non-booting driver supported by SiliconImage SiI3132.

o        Linux 32bit / 64bit drivers supported for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 4.0, RHEL 4.0 Up1, SuSE 9.0 SP1 RC5, SuSE Pro 9.3 by SiliconImage SiI3132.

o        Fully RoHS compliant

o        Chipset : SiI3132
