PE-150E

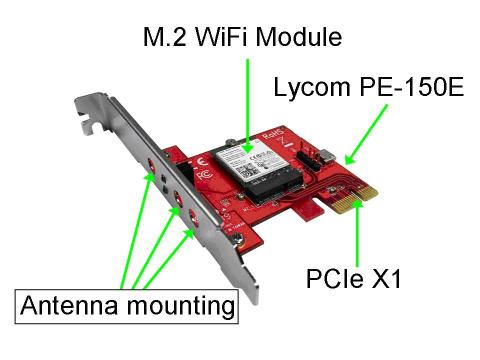

M.2 E Key to PCIe Adapter for M.2 WiFi Module










Utilize Advanced PCIe base and USB base M.2 E Key and A-E Key WiFi Wireless Module on Industrial Computer PCIe x1 Slot!



FEATURES



o        Low profile PCIe x1 Host Adapter

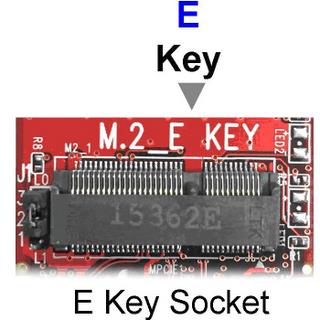

o        M.2 NGFF type 2230-D3-E E Key socket on board





o        PCIe x1 signal interface from PCIe slot to M.2 E Key socket

o        USB2.0 signal interface from main board USB port to M.2 E Key socket

o        Support M.2 E Key and A-E Key WiFi, Bluetooth and Dual Band WiFi / Bluetooth Wireless Module





o        Multiple plated-holes support M.2 type 2230 / 3030 module

o        Both USB micro-B connector and USB 5Pin Pinheader for main board USB port connection

o        2x LED

o        Max 3x Antenna mounting

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and Low Profile bracket included

o        100% OS-transparent hardware bridge converter to support Windows, MAC and Linux

o        Includes USB 5Pin-to-4Pin Cable for USB 2.0 signal from PC to USB 5pin header

o        Supports operating temperature range: -40 - 80 ºC

o        Require an empty PCIe x1 slot and USB2.0 port in computer

      RoHS compliant



** Most M.2 WiFi module use PCIe interface, Bluetooth module uses USB interface, and Dual Band Wireless Module use both PCIe + USB interface
