PE-150B

M.2 B Key to PCIe Adapter for 3G 4G WWAN M.2 Module

FEATURES

o        PCIe x1Lane Host Adapter

o        PCIe x1 & USB3.0 & USB2.0 signal interface from main board to M.2 B Key socket

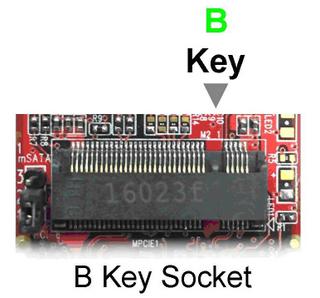

o        M.2 NGFF type 2242-D3-B B Key socket on board

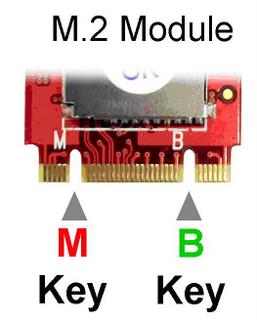

o        Support M.2 B Key and B-M Key Module, such as WWAN (2G, 3G, 4G), WCDMA/HSP/HSPA+/EDGE/GPRS/GSM/GPS/LTE/GNSS Module, M.2 PCIe Host Module

o        Multiple plated-holes support M.2 type 2230 / 2242 / 3030 / 3042 module

o        USB3.0 & USB2.0 signals from main board USB3.0 port via USB micro-B connector

o        USB2.0 signals from main board USB port via USB 5Pin PinHeader

o        WWAN micro-SIM card holder on board

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and Low Profile bracket included

o        100% OS-transparent hardware bridge converter to support Windows, MAC and Linux

o        Supports operating temperature range: -40 - 80 ºC

o    RoHS compliant
