PE-129

@

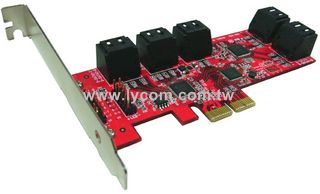

10Ports AHCI 6Gbps SATA III Low Profile PCIe 2.0 Host Adapter

Best Solution for surveillance user to install 10 SATA drives and ODD in one low profile PCIe HBA that no driver required!

FEATURES

@

o        6Gbps SATA III Internal 10 Ports PCIe Gen2 2Lane Host Adapter

o        Supports PCIe 1.0 and PCIe 2.0 motherboard

o        Compliant with x2 PCI Express 2.0

o        Fully compliant with Serial ATA specifications 3.2

o        Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps

o        Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive

o        Supports ATA and ATAPI commands

o        Supports Native Command Queuing (NCQ)

o        Does NOT support SATA Port Multiplier

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and an additional Low Profile bracket included

o        SATA Hot-plug capability

o        Pin headers on board for HDD LED connection

o        OS Built-in AHCI inbox driver natively in Windows 10, 8, Win7, Vista, 2008, 2012, Linux, Mac 10.x and later, no additional driver required

o        BIOS on board supports Windows and Linux OS booting

o        Fully RoHS compliant

@

@

@
