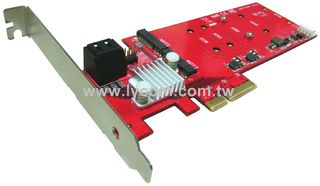

PE-128
Hardware RAID AHCI 6Gbps 2x M.2 NGFF + 2x SATA Low Profile PCIe 2.0 Host Adapter
Discontinued!
FEATURES
o Hardware RAID AHCI 6Gbps SATA III 4Ports PCIe Gen2 x4 Host Adapter with PCIe x2 chipset
o 2x M.2 NGFF type 22110-D5-B sockets and 2x 7Pin SATA connectors on board
o Supports 6Gbps, 3Gbps SATA based M.2 NGFF 110/80/60/42/30mm SSD
o Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260, 2242 and 2230 SSD
o Supports dual-sided SSD module 1.5mm component height on the top and bottom side
o Supports PCIe 4.0, PCIe 3.0 and PCIe 2.0 motherboard
o Compliant with 10Gbps PCI Express 2.0
o Fully compliant with Serial ATA specifications 3.0
o Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
o Supports SATA I & SATA II & SATA III drive and M.2 NGFF SSD
o Supports ATA and ATAPI commands
o Provides Windows & Mac & Linux GUI and Windows Legacy BIOS to configure Hardware RAID 0, RAID 1, RAID 10, HybridDrive modes to M.2 SSD and drives these directly attached to this Host Adapter
o Supports Native Command Queuing (NCQ)
o Supports max one SATA FIS-based or Command-based Port Multiplier and max 4 non-Raid individual HDD or SSD connected to Port Multiplier
o Supports max 7 drives and M.2 NGFF SSD connected
o Pin header on board for drive LED connection
o Low Profile PCIe Form Factor
o Regular size PCIe bracket on board and Low Profile bracket included
o Require an empty PCIe x4 or x8 or x16 slot in computer
o OS Built-in AHCI inbox driver natively in Windows 10, 8, Win7, Vista, 2008, 2012, Linux, Mac 10.x and later, no additional driver required
o Supports Windows XP driver
o PCBA and M.2 SSD default power from PCIe bus
o When high power M.2 SSDs installed, optional Molex 4Pin power input can automatically provide sufficient power from 12V of power supply instead of PCIe bus power
o Legacy BIOS on board supports Windows and Linux OS booting
o Fully RoHS compliant
