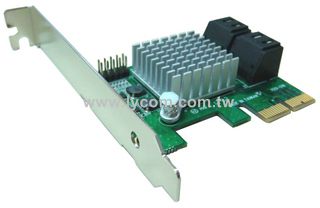

PE-120

@

H/W RAID AHCI SATA III 6Gbps Internal 4Ports Low Profile PCIe 2.0 Host Adapter

@

Internal 4Ports 6Gbps AHCI SATA III PCI Express 2.0 2Lane Host Adapter!

@

FEATURES

@

o        Hardware RAID AHCI 6Gbps SATA III 4Ports PCIe Gen2 x2 Lane Adapter

o        Compliant with 10Gbps x2 PCI Express 2.0

o        Fully compliant with Serial ATA specifications 3.0

o        Supports SATA III transfer rate of 6.0Gbps

o        Supports SATA HDD, SSD, Optical Drive and Blu-Ray Drive

o        Supports ATA and ATAPI commands

o        Supports Native Command Queuing (NCQ)

o        Supports max one SATA FIS-based or Command-based Port Multiplier and max 4 non-Raid individual HDD or SSD connected to Port Multiplier

o        Supports totally max 7 drives connected

o        SATA Hot-plug capability

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and an additional Low Profile bracket included

o        Pin headers on board for HDD LED connection

o        OS Built-in AHCI inbox driver natively in Windows 10, Win8, Win7, Vista, 2008, 2012, Linux, Mac 10.x and later, no additional driver required

o        Provides Windows XP driver

o        Legacy BIOS ROM on board support OS Booting & RAID Configuration on Windows and Linux

o        Provides Windows & Mac & Linux GUI to configure and monitor Hardware RAID0, RAID1, RAID 10 on attached drives directly to this Card

o        Fully RoHS compliant

Not support connected boot drive in UEFI only MainBoard that no CSM enable option

@
