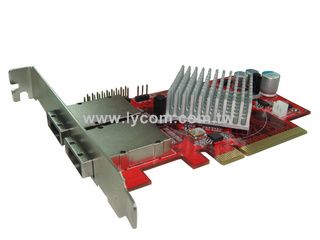

PE-118e
¡@
External 8Ports 6G SATA/SAS SFF-8088 Low Profile PCIe 2.0 8 lane Host Adapter
Eight external SAS/SATA ports with two SFF-8088 mini-SAS connectors in Low Profile PCI Express 2.0 x8 host adapter
FEATURES
¡@
o 40 Gbps transfer rate PCIe 2.0 x8 interface card
o Eight SATA/SAS ports by two SFF-8088 external mini-SAS connectors
o Compliant with PCI Express Specification, Revision 2.0
o Low Profile PCIe Form Factor
o Regular size PCIe bracket on board and Low Profile PCIe Bracket included
o Supports main board PCI Express 2.0 x8 and x16 host slot
o SATA Revision 3.0 (6 Gbps) specification compliant.
o Serial Attached SCSI ¡V 2.0 (SAS-2.0) specification compliant.
o Supports auto-detection of SAS or native SATA device.
o Supports PCIe Power Management: D0, D1, D3_cold, D3_hot.
o Supports 6 Gbps, 3 Gbps & 1.5 Gbps SAS or SATA devices.
o Supports SAS Multiplexing but NOT support SATA Port Multiplier.
o Supports SSC with independent control of each PHY.
o Supports wide SAS ports.
o Supports SAS Protocol (SSP), initiator and target mode.
o Supports SAS Management Protocol (SMP), initiator mode.
o Supports SATA Tunneling Protocol (STP), initiator mode including
o Non-zero offset and non-sequential data delivery.
o ATA and ATAPI commands
o Native Commands Queuing (NCQ)
o Hot-plug capability.
o Completely with drivers for 64bit / 32bit Windows 7, Vista, XP, 2003 and 2008
o Fully RoHS compliant
¡@
