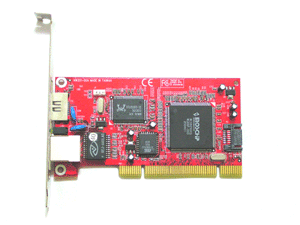

NW-201
SATA + Giga LAN Combo Low Profile PCI Host Adapter
¡@
¡@
FEATURES
¡@
o 1 Port Gigabit Ethernet (1000Mbps, 100 Mbps, 10 Mbps) and 2 Ports SATA (1.5 Gbps) PCI host interface
o Compliant with PCI Specification revision 2.2, 32 bit, 33MHz
o Low Profile Form Factor
o Provides Low profile PCI and Regular size PCI two brackets
o Integrated PCI DMA engine
o Supports 32bit /64bit Windows 7, Vista, XP, 2000, 2003 server
o Fully RoHS compliant
¡@
1. High Speed Serial ATA
¡@
o Independent two ports Native Serial ATA (1 external and 1 internal)
o One special shielded and durable L-Type SATA connectors on External Port
o Serial ATA data rates 1.5Gbps
o 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
o Fully compliant with Serial ATA 1.0a specifications
o Supports Spread Spectrum in receiver
o Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes
¡@
2. 1000Base-T Gigabit Ethernet
¡@
o Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)
o RJ-45 Port offer high speed transmission over CAT 5 UTP cable
o Green LED indicator for 10/100/1000 Link
o Yellow LED indicator for ACT (Tx / Rx)
o Auto-Negotiation with Next page capability
o Crossover Detection & Auto-Correction
o Wake-on-LAN and remote wake-up support
o Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support
o Supports Full Duplex flow control (IEEE 802.3x)
o Supports IEEE 802.1Q VLAN tagging
o 8K Transmit FIFO and 64K Receive FIFO support
o Supports power down/link down power saving
o Jumbo Frame 7440 bytes
¡@
SPECIFICATION
¡@
o Bus Architecture: Low Profile 32bit PCI Bus (MD1)
¡@
o Dimension: 120mm x 64mm
¡@
o PCB: 4 Layers / FR-4 94V0 / 0.5 oz / 1.6mm
¡@
o Gigabit LAN Port: RJ-45 Port
¡@
o SATA Ports: 2 Serial ATA Ports
¡@
o Temperature: Operating +5 ¢J to ¡Ï45 ¢J
Non Operating ¡Ð25 ¢J to ¡Ï70 ¢J
¡@
o Humidity: Operating 20¢H to 80¢H
Non Operating 15% to 90¢H
¡@
o EMC Compliance: EN55022/1998, EN55024/1998 (European Community)
FCC Part 15 Class B (DoC) (US)
