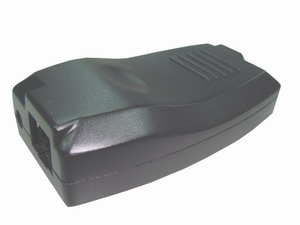

NW-101

USB Device Extender & Shared Over CAT5 RJ-45 GigaLAN

Up to 100 meters USB extender!

Wild base USB device is shared to every client PC in your existing 1000 or 10/100 Mbps Networking HUB!

FEATURES

o        Up to 30MB/s fast transfer rate on storage accessing

o        Make PC to access a long distance USB2.0 or USB1.1 device up to 100 meter CAT5 cable

o        Let an USB device be shared by every PC in office or home through LAN HUB

o        Support Gigabit Ethernet (10/100/1000 Mbps)

o        10/100 or 10/100/1000 auto sensing (Auto-MDIX capable)

o        RJ-45 Port offer high speed transmission over CAT 5 UTP cable

o        Fully compliant with IEEE 802.3-2002 specifications

o        Compatible with bulk, interrupt and isochronous type of USB devices

o        Complies with USB 2.0 specification transfer rate 480 Mb/s

o        Compatible with USB OHCI / UHCI / EHCI

o        Hot-plug of Gigabit Ethernet and USB support

o        Supports an USB Device such as Printer, Scanner, DV, DSC, Cell Phone, Hard Drive, Card Reader, DVD RW, MP3, Flash Drive, Floppy, Audio, Phone, Display, Webcam, Mice, Keyboard, Joystick

o        Does NOT support USB HUB

o        Power and Link LED indication

o        Completely with drivers and GUI for 32bit/64bit Windows XP, Vista and Win7

o        Fully RoHS compliant

APPLICATION DIAGRAM

o        AP-1: USB Device Extender over CAT5 through LAN HUB

o        AP-2: USB Device Shared over CAT5 through LAN HUB

   o        AP-3: USB Device Extender to PC directly
