NW-107R

GigaLAN 1000BASE-T Ethernet PCIe x1 M.2 A-E Key Module (Right Angle RJ-45)

FEATURES

o        PCIe base M.2 type 2260-D5-A-E Dual A - E Key notch 75Pin 60mm Gigabit LAN module

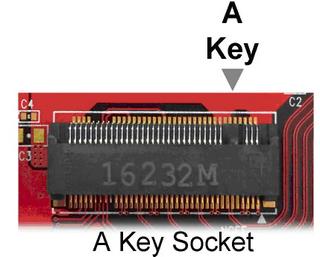

o        Work with main board M.2 A Key Socket and M.2 E Key Socket

o        Support M.2 type 2230 and 2260 plated-holes

o        Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)

o        Compliant with PCI Express Specification, revision 1.0a

o        PCI Express 1-Lane host interface

o        RJ-45 Port offer high speed transmission over CAT 5 UTP cable

o        2 LEDs indicate for various network activities (1000 and LNK/ACT)

o        Auto-Negotiation with Next page capability

o        Supports pair swap/polarity/skew correction

o        Crossover Detection & Auto-Correction

o        Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support

o        Supports Full Duplex flow control (IEEE 802.3x)

o        Supports IEEE 802.1Q VLAN tagging

o        Jumbo Frame sizes 9K bytes

o        Configurable 48KB deep Buffer support

o        Provides driver for 32/64 bit Windows 10, 8.1, 8, 2012, Win7, 2008, Vista, XP, 2003 and Mac OS X 10.4, 10.5, 10.6, 10.7

o  Fully RoHS compliant
