KW-222N-2

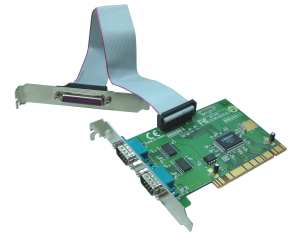

RS232 2Ports & Parallel 1Port PCI Host Adapter

Add 2 Ports RS232 and 1 Port 1284  on PCI card to Transmit / Receive serial data at 115Kbps & 16-byte deep FIFO to your System

Support SPP, PS2, EPP, ECP

FEATURES

1. PCI

  • Compliant with PCI Specification, revision 3.0 and PCI Power Management Specification 1.1
  • 32 bit/33MHz fully compliant PCI host interface
  • 5V Operation

2. RS232 (UART) Serial Port

  • Two DB9M UART channels
  • 16-byte deep FIFO per transmitter and receiver
  • RS232 Supports data transfer rate up to 115 Kbps
  • One DB25F Parallel Ports
  • IEEE1284 Compliant SPP/EPP/ECP parallel port
  • Fast data rates up to 1.5 Mbytes/s (parallel port)
  • Re-map function for legacy ports
  • Support Windows 98SE / ME / NT4.0 / 2000 / XP / 2003 / Vista
  • Fully RoHS compliant
  • Supports 64bit / 32bit Windows Vista
  • Chipset : Moschip
