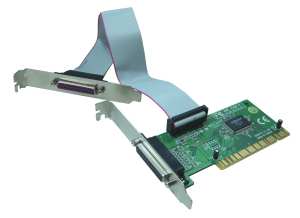

KW-220N-2

Parallel 2Ports Low Profile PCI Host Adapter

Discontinued!

FEATURES

1. PCI

• Compliant with PCI Specification, revision 3.0 and PCI Power Management Specification 1.1
• 32 bit/33MHz fully compliant PCI host interface
• 5V Operation
• Low Profile PCI Form Factor
• Includes Low Profile & Regular size PCI brackets

2. RS232 (UART) Serial Port

• Two DB25F Parallel Ports
• IEEE1284 Compliant SPP/EPP/ECP parallel port
• 16-byte deep FIFO
• Fast data rates up to 1.5 Mbytes/s (parallel port)
• Re-map function for legacy ports
• Support Windows 98SE / ME / NT4.0 / 2000 / XP / 2003 / Vista
• Fully RoHS compliant
• Supports 64bit / 32bit Windows Vista
• Chipset: Moschip
