KB-104

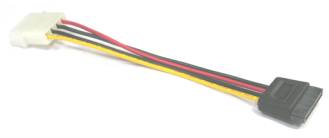

Serial ATA Power cable (Molex 4Pin to SATA 15Pin)

LENGTH : 17CM

　

Molex 4Pin Power connector to Serial ATA15pin power connector cable.

Ideal for connecting a Serial ATA Hard Drive to PC power supply.

MATERIALS

  • Serial ATA receptacle 15 pin.

  • Insulator: LCP UL94V-0, black.

  • Contact: Phosphor bronze.

  • Plating: Contact area: Gold flash over nickel.

  • Molex 4 pin power connector.

  • Insulator: NY-66 UL94V-0, natural.

  • Contact: Brass.

  • Plating: Nickel

  • Cable: 18 AWG (Black X2, Yellow X1, Red X1)

ELECTRICAL CHARACTERISTICS

  • Insulation resistance: 1000MW, min.

  • Dielectric withstanding voltage:  500 VAC for 1 minute at sea level.

  • Low level contact resistance: Initially 30 mW max. Resistance increasa 15 mW maximum after stress.

  • Contact current rating: 1.5A per pin min.

  • Insertion force: 45 N maximum.

  • Removal force: 10 N minimum.

  • Units: All dimension are in mms.
