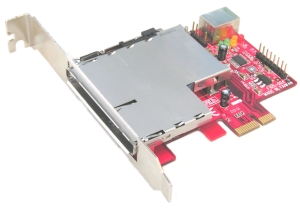

DT-105
PCIe to ExpressCard Low Profile PCIe Converter Board
FEATURES
o Supports ExpressCard/34 and ExpressCard/54
o Supports PCI Express-Based ExpressCard and USB-Based ExpressCard
o Support USB-based ExpressCard hot-plug
o Does NOT support the hot-plug of PCIe-based ExpressCard
o Four LEDs indicate for 3.3Vout, 1.5Vout, Vaux, OverCurrent
o Both USB type B connector and USB 5Pin Pin header for USB host connection when USB-based ExpressCard
o Low Profile PCIe Form Factor
o Includes Low Profile and Regular size PCIe brackets
o 8 Status/Control Pin Headers on board for technical user
o Fully RoHS compliant
